product specification

With its high-precision engineering and exclusive British design from Naim, this product brings you a world of streamed music and radio, handling vinyl and audio headphones, as well as creating a high-performance analog preamplifier. Combine it with the NAP 250 power amplifier for an exceptional assembly: just add loudspeakers

Sleek design meets audiophile quality

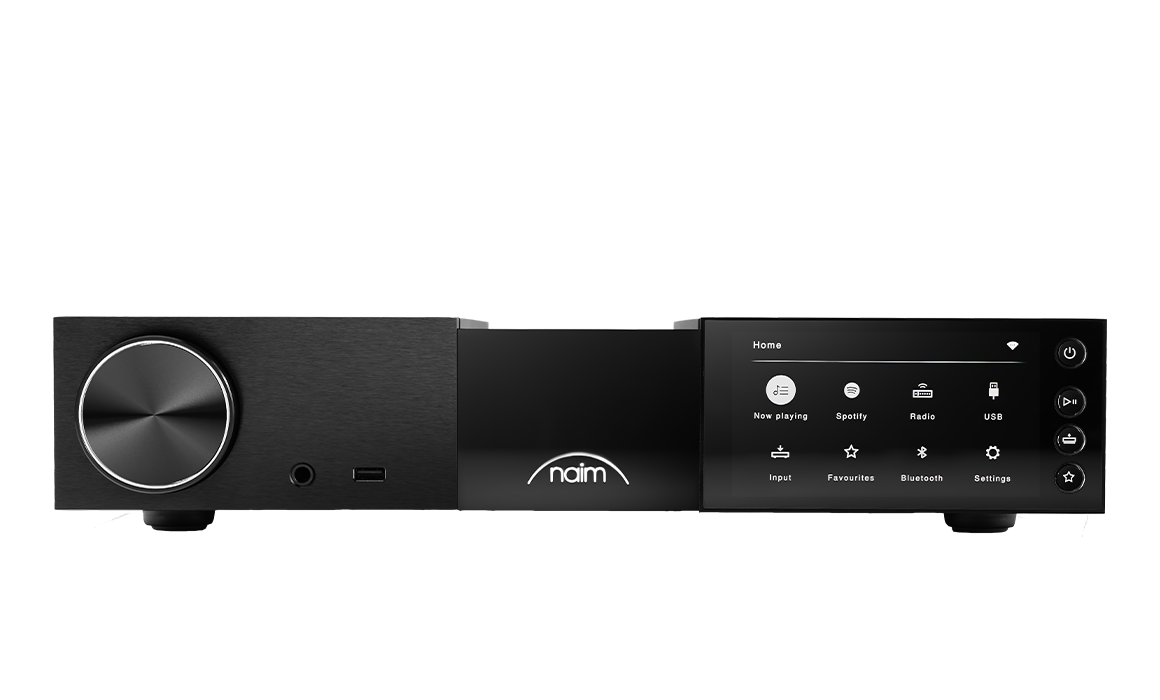

Begin your New Classic musical journey with the highly versatile NSC 222 preamplifier. Access a wide range of music streaming platforms (Spotify, TIDAL, Qobuz, etc.), a very large number of online radio stations, handling bitrates of up to 32bit/284kHz.
Want to enjoy vinyl? The NSC 222 has a MM phono input. Do you like headphones and want to dive into a world of solo listening? NSC 222 is also equipped with the full Naim technology for headphone listening, which is inherited from the Uniti Atom Headphone Edition: our amplifier-DAC, the recipient of several awards all around the world.

A unique streaming platform

NSC 222 incorporates the very latest Naim streaming platform. Made by our experts in Salisbury, it sets new standards in terms of its prowess, functionality and ease of use. It is designed to offer true Hi-Fi performance, with the legendary Naim sound. Play all your favourite radio stations non-stop, as well as any music you choose from Spotify Connect, Apple Music, TIDAL, TIDAL Connect, Qobuz, AirPlay 2, Chromecast, UPnP™ servers, USB key, Roon Ready, and more.

Easy App control – in one room or many

The Naim App – available for Apple and Android devices – makes it simple to control your NSC 222, and even link up other music systems around your home into a stunning multi-room set-up. Use the App to access all your music, including your favourite radio stations, streaming services and playlists, and explore artist discographies and biographies.

Simple and enjoyable to use

The NSC 222 is very simple to use – you can easily control it using the Focal & Naim app, available on iOS and Android, but also with the Zigbee smart remote control supplied. Of course, you can also access many features via the NSC 222 itself, and its backlit volume button. For your listening pleasure, the 5.5” colour screen displays the tracks being played.

Specification

Audio Inputs

USB

2 x USB Type A socket (front and rear - 1.6A charge)

Digital (S/PDIF)

2 x Optical TOSLINK (up to 24bit/96kHz)
1 x coaxial RCA (up to 24bit/192kHz, DoP 64Fs)
1 x coaxial BNC (up to 24bit 192kHz, DoP 64Fs)

Audio Input

1 x moving magnet phono
1 x 8-pin DIN (compatible with 5-pin DIN cables)
1 x RCA stereo pair
Line level inputs (RCA/DIN): Impedance 47k, 2.2V typical, 7.5Vrms Max
8 pin DIN has +/-18V for compatible external phono stages such as Solstice NVC TT
Compatible with 5 pin DIN
MM phono: 47k/470pF, 5mV, 23dB overload (75mV max)

Audio Outputs

Distortion

MM: < noise floor
Line: 0.0025% @2.2V input volume at 0dB, 1kHz
(Line: 0.015% @2.2V input volume at 0dB, 20kHz)
Digital: 0.0035% @0dBFS volume at 0dB, 1kHz

Digital level

2.1V at 0dBFS volume at 0dB

Audio Outputs

Analogue
1 x XLR pair (Stereo XLR balanced impedance 7Vrms max)
1 x RCA pair (Stereo RCA 7Vrms max)
1 x 6.35mm headphone jack (Headphone 1.5W into 16)

Crosstalk

MM: 90dB at 1kHz, volume at 0dB
Line: 90dB at 1kHz, volume at 0dB
 (Line: 70dB at 20kHz, volume at 0dB)
Digital: 90dB at 1kHz, volume at 0dB

Analogue

Pre-amplifier at max volume 15.5dB
Phono stage MM 40dB

Signal-to-Noise Ratio

MM 80dB ref 5mV A-wtd volume at 0dB
Line 104dB ref 2.2V A-wtd volume at 0dB
Digital 102dB ref 0dBFS A-wtd volume at 0dB

Frequency Response

MM: -3dB at 10Hz, RIAA +/-0.1dB
Line: 3Hz to 40kHz -3dB
Digital: 3Hz to 27kHz -3dB

Connectivity

Network

Ethernet (10/100Mbps), Wi-Fi (802.11 b/g/n/ac)

Formats

Audio Formats

WAV - up to 32bit/384kHz
FLAC and AIFF - up to 24bit/384Hz
ALAC (Apple Lossless) - up to 24bit/384Hz
MP3 - up to 48kHz, 320kbit (16 bit)
AAC - up to 48kHz, 320kbit (16 bit)
OGG and WMA - up to 48kHz (16 bit)
DSD - 64 and 128Fs
M4A - up to 48kHz, 320kbit (16 bit)
Gapless playback supported on all formats

Physical

Weight

24.25lbs (11kg)

Dimensions (HxWxD)

35/8x17x121/2" (9.15x43.2x31.75cm)

Power

Mains Supply

115V or 230V, 50/60Hz

Power Consumption

Typical use consumption:  25W
Network standby mode consumption: <2W
Standby mode consumption: <0.5w

Product Type

Type

Preamplifier

User Control

App Control

App control (iOS and Android), bi-directional ZigBee remote and front panel
Optical 3.5mm output for synchronised control of compatible products
