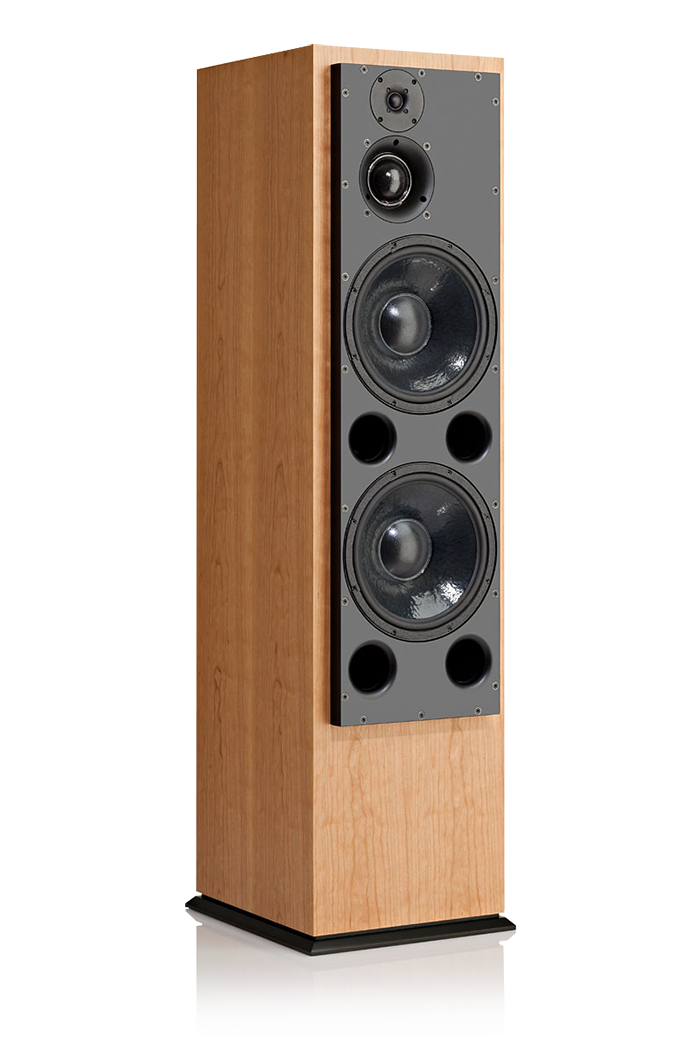

atc scm200a SLT

£39,800.00

  • 25mm soft dome tweeter

  • Twin, full spec “SL” 12″/314mm bass drivers

  • ATC 75mm “Super Dome” mid driver

  • Rack-mount ATC 4-way grounded source 850W P4 amplifier

  • 6 year warranty

Product Block
This is an example product. Double-click here to search for one of your own products to display. Learn more

Available Finishes

Standard Veneers – Cherry, Walnut, Oak & Black Ash.
Standard Paints – Satin Black, Satin White
Premium Veneers (up-charge applies) – Rosewood, European Crown Cut Walnut, Burr Walnut, Pippy Oak, Burr Magnolia, Burr Poplar.
High Gloss (up-charge applies) – Clear High Glossed Veneer, Piano Black, Piano White

Specification

Drivers: HF 25mm, Mid 75mm, LF 2 x 314mm
Amplitude Linearity (±2dB): 60Hz-12kHz
Cut-off Frequencies (-6dB, free-standing): 32Hz, 20Khz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 118dB
Crossover Frequencies: 380Hz, 3.5kHz
Input Connector: Female XLR
Input Sensitivity: 2V
Input Impedance: Balanced > 10kΩ
Amplifier Output: Bass 275+275W, Mid 200W, High 100W
Filters: Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
Dimensions (HxWxD): 1586 x 398 x 535mm / 62.44 x 15.67 x 21.06″
