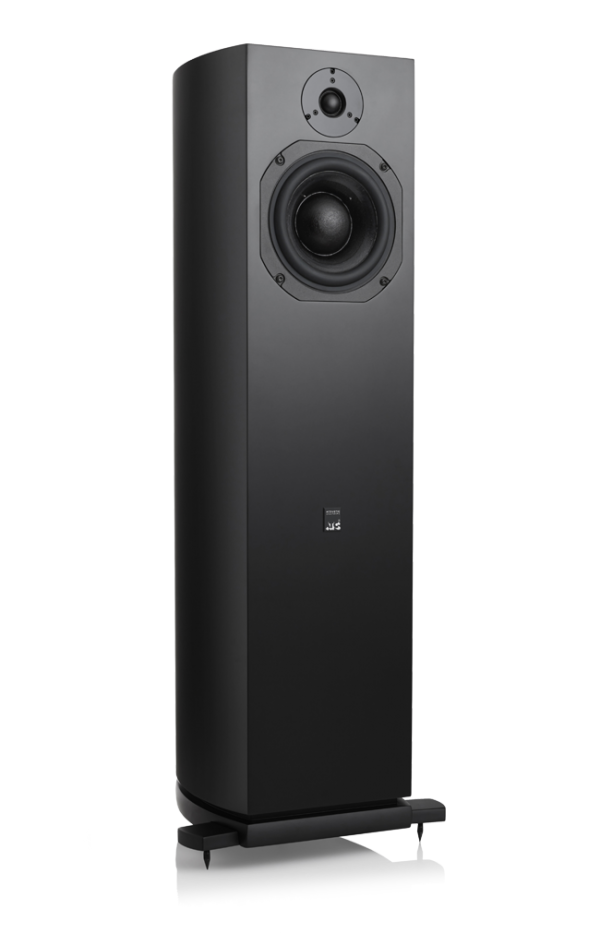

atc scm19 - active speaker

£4,800.00

Overview

  • New ATC designed and built dual suspension 25mm soft dome HF unit with precision alloy wave guide.

  • “SL” spec bass driver with 75mm integral Soft Dome.

  • 9kg optimised short-coil/long gap motor assembly.

  • On-board grounded source 182 watt Class A/B Bi-amplifier.

  • Active crossover filters and overload protection.

  • Veneered Finish Options – Cherry, Black Ash.

  • Painted Finish Options – Satin Black, Satin White.

  • 6 year warranty.

Product Block
This is an example product. Double-click here to search for one of your own products to display. Learn more

Specfication

Drivers: HF ATC 25mm dual suspension Tweeter, Mid/LF ATC 150mm SL
Matched Response: +/- 0.5dB
Frequency Response (-6dB): 54Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Max SPL: 108dB
Crossover Frequency: 2.5kHz
Input Connector: Female XLR
Input sensitivity: 1V
Filters: 2nd Order critically damped with phase compensation
Overload Protection: Active FET momentary gain reduction
Amplifier Output: 150W LF, 32W HF
Dimensions (HxWxD): 980 x 370 x 344mm / 38.58 x 14.56 x 13.54″ (inc. foot plinth & amp, spikes add 25mm to height, grill adds 34mm to depth)
Weight: 31kg
Spikes: 4 per cabinet, M8 x 1.25mm
