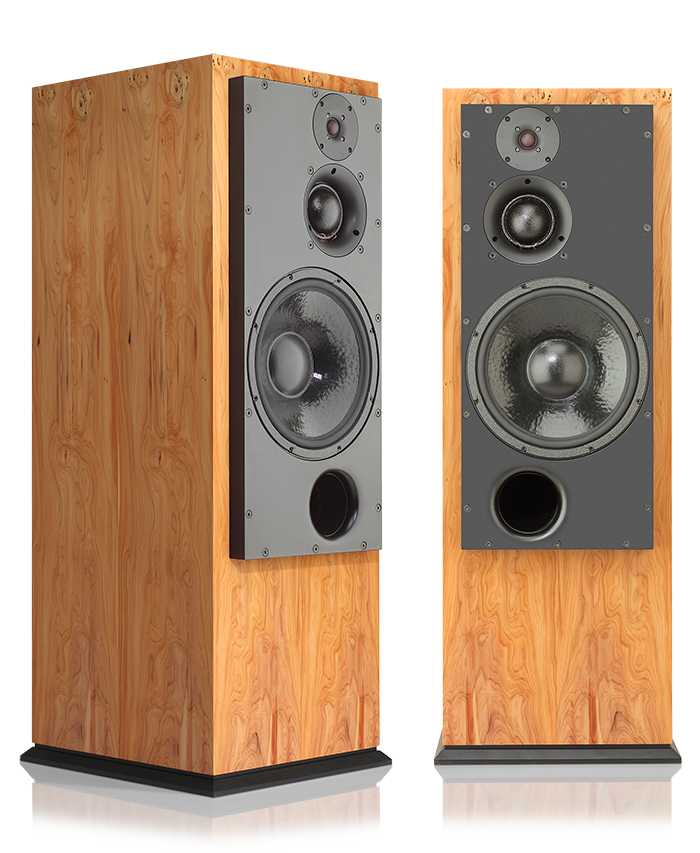

atc scm100a SLT

£20,675.00

  • Also available in passive version (SCM100PSLT)

  • ATC SM75-150 S Soft Dome Mid driver

  • Latest 314mm SL Spec Bass driver

  • Massive ATC motor assembly

  • Wide, even dispersion for pin-point imaging

  • 350 watt Class AB tri-amp pack (active version)

  • Active filters and overload protection (active version)

  • 6 year warranty

Product Block
This is an example product. Double-click here to search for one of your own products to display. Learn more

Available Finishes

Standard Veneers – Cherry, Walnut, Oak & Black Ash.
Standard Paints – Satin Black, Satin White
Premium Veneers (up-charge applies) – Rosewood, European Crown Cut Walnut, Burr Walnut, Pippy Oak, Burr Magnolia, Burr Poplar.
High Gloss (up-charge applies) – Clear High Glossed Veneer, Piano Black, Piano White

Specification

Active

Drivers: HF 25mm Neodymium, Mid 75mm ATC Soft Dome, LF 314mm SL
Amplitude Linearity (±2dB): 65Hz–17kHz
Frequency Response (±6dB): 32Hz–22kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Max SPL: 115dB
Crossover Frequencies: 380Hz & 3.5kHz
Connectors: Female XLR
Filters: Active – 4th Order Linkwitz-Riley, Passive – 2nd Order linkwitz-Riley
Amplifier Output: 200w LF, 100w Mid, 50w HF (active version)
Accessories Inc. (per pair): 2 x fabric wrapped grills, 8 x M8 x 1.25mm stand spikes and nuts, 2 x IEC Power Cables.
Cabinet Dimensions (HxWxD): 1070 x 397 x 560mm / 42.13 x 15.63 x 22.05″
Weight: 68kg

Passive

Drivers: HF 25mm Mid 75mm LF 314mm Super Linear
Amplitude Linearity ±2dB: 65Hz – 17kHz
Frequency Response -6dB: 35Hz & 22kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal ±10° Coherent Vertical
Sensitivity (sine wave): 88dB @ 1W @ 1m
Max continuous SPL @1m: 115dB SPL
Crossover Frequency: 380Hz & 3.5kHz
Input Connector: Binding Posts/4mm banana plugs
Recommended Power Amplifier: 100 to 1500 Watts
Nominal Impedance: 8 ohms
Accessories Inc. (per pair): 2 x fabric wrapped grills, 8 x M8 x 1.25mm stand spikes and nuts.
Cabinet Dimensions (HxWxD): 1070 x 397 x 560mm / 42.13 x 15.63 x 22.05″
Weight: 58.5kg
