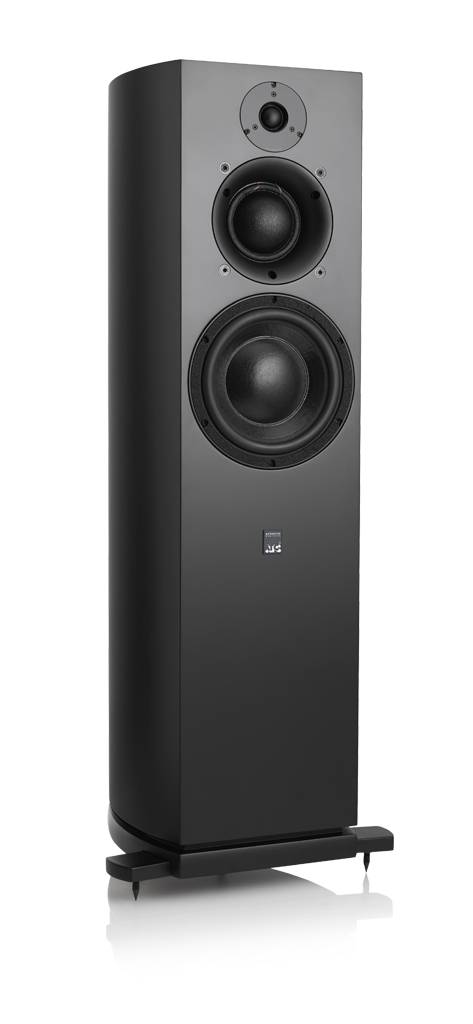

atc scm40 - passive series

£7750.00

Overview

New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.

  • ATC 164mm bass driver.

  • Massive optimised motor assembly.

  • ATC Soft Dome mid-range driver.

  • Flat impedance curve allowing easy load for amplifiers.

  • Veneered Finish Options – Cherry, Black Ash.

  • Painted Finish Options – Satin Black, Satin White.

  • 6 year warranty.

Product Block
This is an example product. Double-click here to search for one of your own products to display. Learn more

Specification


Drivers: HF ATC 25mm Neodymium, Mid 75mm ATC Soft Dome, LF ATC 164mm SC
Matched Response: ±0.5dB
Frequency Response (-6dB): 48Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity: 85dB @ 1W @ 1metre
Max SPL: 112dB
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Crossover Frequencies: 380Hz & 3.5kHz
Connectors: Binding Posts/4mm Plugs, tri-wire
Dimensions (HxWxD): 980 x 370 x 305mm / 38.58 x 14.56 x 12.01″ (inc. foot plinth, spikes add 25mm to height, grill adds 34mm to depth)
Weight: 31kg
Spikes: 4 per cabinet, M8 x 1.25mm
