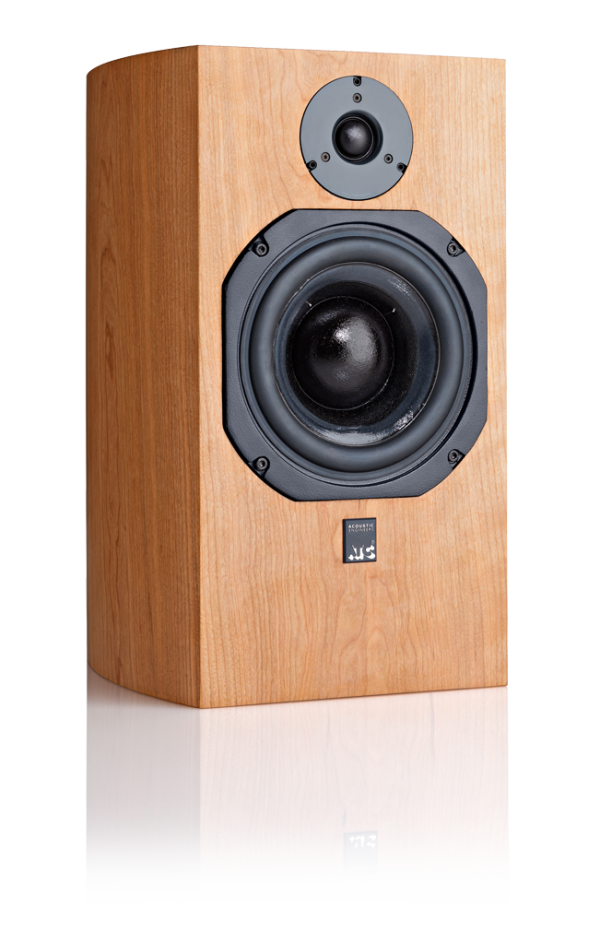

atc scm19 - passive series

£2,400.00

Overview

New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.

  • “SL” spec bass driver with 75mm integral soft dome.

  • 9kg optimised short-coil/long gap motor assembly.

  • In-house, hand-wound precision flat wire coil.

  • Flat impedance curve allowing easy load for amplifiers.

  • Veneered Finish Options – Cherry, Black Ash.

  • Painted Finish Options – Satin Black, Satin White.

  • 6 year warranty.

Product Block
This is an example product. Double-click here to search for one of your own products to display. Learn more

“Superlative clarity; excellent phase coherence; sublime bass.”  Hi-Fi Choice Magazine, September 2014

Specfication
Drivers: HF ATC 25mm Neodymium soft dome, Mid/LF ATC 150mm SL
Matched Response: ±0.5dB
Frequency Response (-6dB): 54Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity: 85dB @ 1W @ 1metre
Max SPL: 108dB
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Crossover Frequency: 2.5kHz
Connectors: Binding Posts/4mm Plugs, bi-wire
Cabinet Dimensions (HxWxD): 438 x 265 x 300mm / 17.24 x 10.43 x 11.81″ (grill adds 34mm to depth)
Weight: 17.8kg
