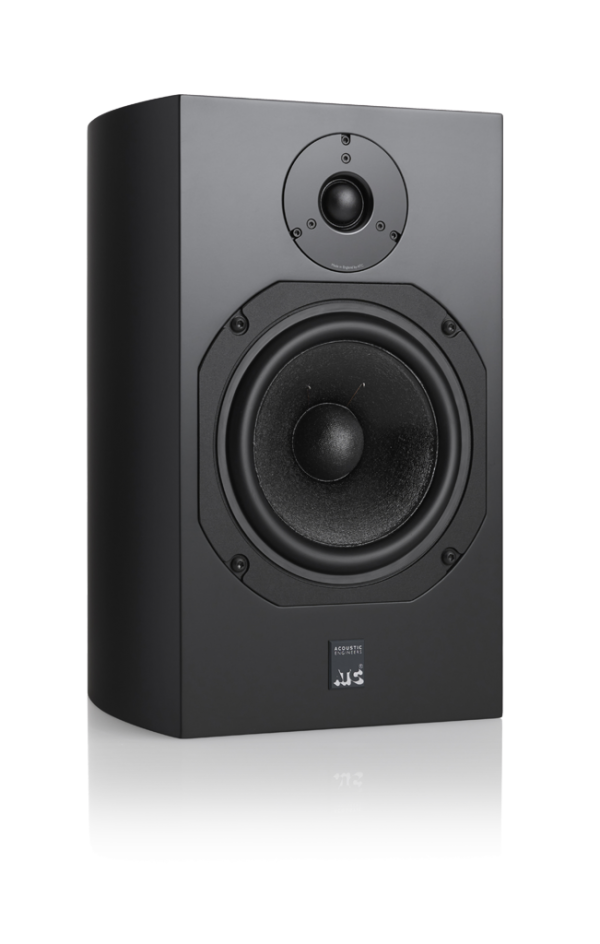

atc scm11 - passive series
£1,520.00
Overview
New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.
Precision undercut bass pole.
“CLD” driver technology with 45mm integral soft dome.
In-house, hand-wound precision flat wire coil.
Massive optimised motor assembly.
Flat impedance curve allowing easy load for amplifiers.
Veneered Finish Options – Cherry, Black Ash.
Painted Finish Options – Satin Black, Satin White.
6 year warranty.
Specfication
Drivers: HF ATC 25mm Neodymium soft dome, Mid/LF ATC 150mm CLD
Matched Response: ±0.5dB
Frequency Response (-6dB): 56Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity: 85dB @ 1W @ 1metre
Max SPL: 108dB
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Crossover Frequency: 2.2kHz
Connectors: Binding Posts/4mm Plugs, bi-wire
Cabinet Dimensions (HxWxD): 381 x 232 x 236mm / 15.00 x 9.21 x 8.46″ (grill adds 28mm depth)
Weight: 10.9kg
